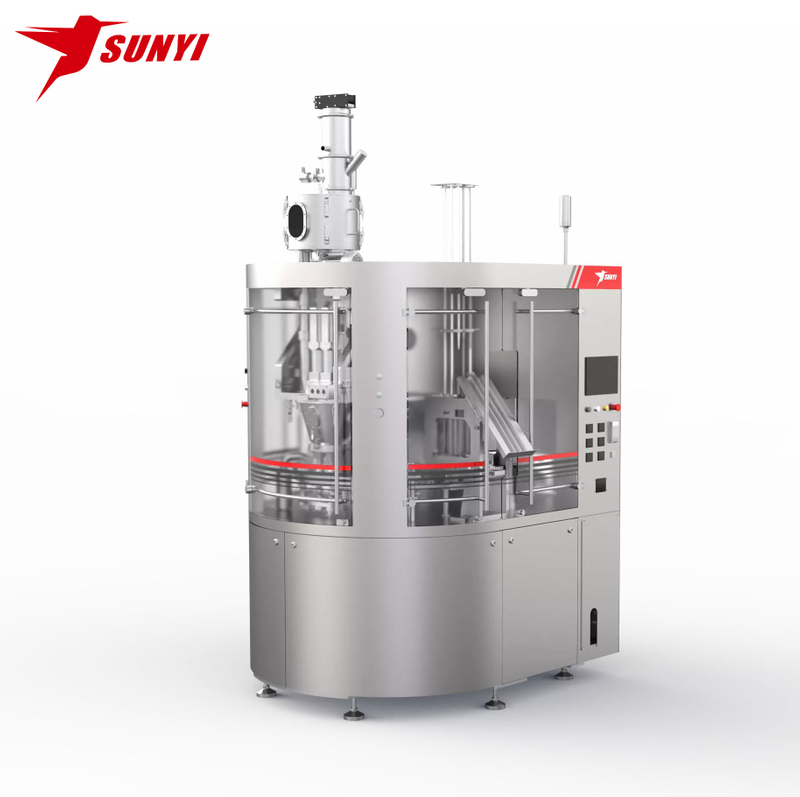

SC-3N three lanes rotary coffee capsule filling and sealing machine can produce 150-180 capsules per minute, with excellent sealing and smooth operation. It is the best choice for producing high-quality coffee capsules. In addition, molds can be replaced according to customers' different production needs
Product Details
Technical Parameters
| Machine | The main body of the machine and the parts incontact with food are all 304 stainless steel, andthe rest are made of iron, aluminum, plastic, etc. |
| Manufacture Standard | CE,SGS,IS09001 |
| Filling Material | Ground Coffee Powder, Tea Powder, ProbioticsSoluble Powderetc. |
| Sealing Material | Sealing Foil in Roll, Precut/die-cut Foil Lids, PaperFilm, etc, |
| Production Capacity | 150-170 capsules/min. |
| Filling Method | Servo Motor Driving the Auger screw, much more precise |
| Filling Weight | 5-5.5g |
| Feeding Method | Vacuum Feeder + Horizontal Screw |
| Filling Accuracy | ±5% (AVG. W.t. of 10,000 data) |
| Power Supply | 3Phase 380V 50/60HZ 16KW |
| C ompressed air pressure (bar) | 0.6Mpa-0.8Mpa |
| Compressed Air Consumption | 0.9 m*3 / minute |
| Nitrogen consumption(Nm3/h) | 65-80 |
| Machine Weight | 3500Kg |
| Machine Dimension | 2533X1474x2997mm (Based on the real size)
|
Certificates
Company Profile
Sunyi Machinery is the China Top Leader and Most Professional Manufacturer of the compatible coffee capsules filling packing machine for over 12 years. It is a technologically innovative enterprise specializing in the research, development, manufacture and sale of intelligent food packaging machinery equipment, packaging systems and various automation control equipment, especially in Coffee Capsule filling sealing packaging machinery, and the other packaging machines.
FAQ
1.How can we make sure about the machine quality after we place the order?
*Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
2.what can you buy from us?
*Filling and Sealing Production Line,Production Line Accessories
